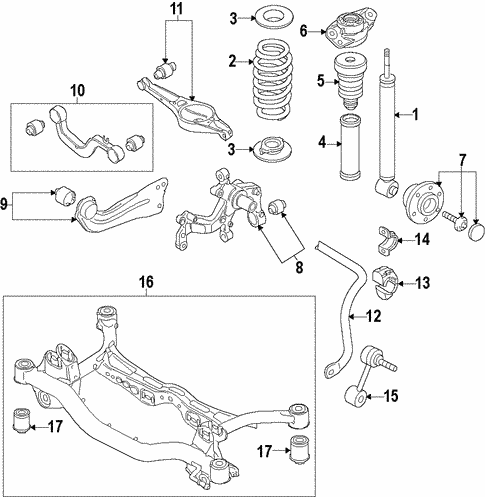

Rear Suspension for 2012 Volkswagen CC

Suspension Cross-member

CC. Fwd. Passat. Without awd.

Suspension Cross-member Front Bushing, Left

CC. Fwd. Front. Without awd.

Suspension Cross-member Rear Bushing, Left

CC. Fwd. Rear. Without awd.

Suspension Cross-member Front Bolt, Left

Fwd. Without awd.

Suspension Cross-member Rear Bolt, Left

Fwd. Without awd.

Knuckle, Left

CC. Eos. Fwd. Left. Passat. Without awd. Tiguan Limited.

Knuckle, Right

CC. Eos. Fwd. Right. Passat. Without awd. Tiguan Limited.

Knuckle Bushing, Left

Knuckle Mount Bolt, Left

Without awd. All wheel drive. Front wheel drive. Awd, from 10/13/2012. Fwd, from 10/13/2012.

Knuckle Washer, Left

Knuckle Nut, Left

Trailing Arm, Left

CC. Left. Passat. Without awd. Fwd, from vin 3c8240001.

Trailing Arm Bushing, Left

Without awd. Fwd, from vin 3c8240001.

Bracket, Right

Fwd. Without awd.

Bracket Cap, Left

Fwd. Without awd.

Lower Control Arm Mount Bolt, Right

Lower Control Arm Nut, Left

Lower Control Arm Adjust Bolt, Left

Lower Control Arm Adjust Cam, Left

Upper Control Arm Adjust Bolt, Left

Tie Rod Assembly, Left

Tie Rod Assembly, Right

Tie Rod Assembly Mount Bolt, Left

Without r. Without awd. Fwd, from 10/13/2012. Awd, from 10/13/2012. All wheel drive, inner. With 4 link suspension. Front wheel drive, inner. Without performance package.

Suspension Cross-member

CC. Passat. With awd. Tiguan Limited.

Suspension Cross-member Front Bushing, Left

CC. Front. Tiguan. Passat. With r. To 5/28/12. With awd, to 05/25/2012.

Suspension Cross-member Rear Bushing, Left

CC. Rear. Tiguan. Passat. With r. To 5/28/12. With awd, to 05/25/2012.

Suspension Cross-member Mount Bolt, Left

Fwd. With r. With awd, to 05/25/2012.

Suspension Cross-member Spacer, Left

With awd, to 05/25/2012.

Knuckle, Left

CC. Left. Passat. With awd. Tiguan Limited.

Knuckle, Right

CC. Right. Passat. With awd. Tiguan Limited.

Knuckle Nut, Right

Trailing Arm, Right

CC. Right. Passat. Without awd. With awd, to 09/12/2014. Fwd, from vin 3c8240001.

Trailing Arm Bushing, Right

Without awd. Fwd, from vin 3c8240001.

Trailing Arm Mount Bolt, Left

Without r. Without awd. All wheel drive. Front wheel drive. Awd, from 10/13/2012. Fwd, from 10/13/2012. With 4 link suspension.

Trailing Arm Bolt, Left

Fwd. With r. Without awd. All wheel drive. With 4 link suspension, m12x1.5x25.

Bracket, Left

Fwd. Without awd.

Bracket Cap, Right

Fwd. Without awd.

Lower Control Arm, Left

Lower Control Arm Mount Bolt, Left

Lower Control Arm Lock Nut, Left

Upper Control Arm, Left

Upper Control Arm Adjust Bolt, Right

Upper Control Arm Adjust Cam, Right

Tie Rod Assembly Mount Bolt, Right

Without r. Without awd. Fwd, from 10/13/2012. Awd, from 10/13/2012. All wheel drive, inner. With 4 link suspension. Front wheel drive, inner. Without performance package.

CC. Without awd.

CC. Without awd, with 1 blue, 1 lilac & 1 blue mark, with 1 blue, 1 lilac & 1 blue mark.

Spring Seat

Spring Seat

Cover

CC. Eos. Fwd. Passat. Without awd. Tiguan Limited. With ride control.

CC. 119mm. 118mm. Without awd. Passat. 118 mm. Fwd, with sport suspension. Awd, with sport suspension.

Hub & Bearing Assembly

CC. Eos. Fwd. Left. Passat. Without awd. Tiguan Limited.

CC. Eos. Fwd. Right. Passat. Without awd. Tiguan Limited.

CC. Left. Passat. Without awd. Fwd, from vin 3c8240001.

CC. Right. Passat. Without awd. With awd, to 09/12/2014. Fwd, from vin 3c8240001.

Bushings

Bracket

CC. Fwd. Passat. Without awd.

Cross-member Bushing

CC. Fwd. Front. Without awd.

Cross-member Bushing

CC. Fwd. Rear. Without awd.
